We are Manufacturers, Suppliers, Exporters & Services of CNC Trainer Machines and our setup is situated in Pune, Maharashtra, India.

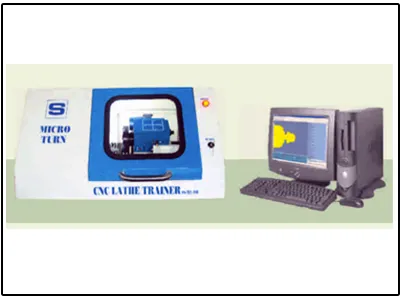

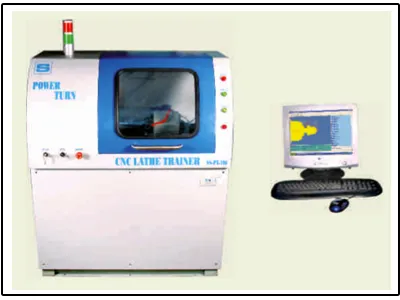

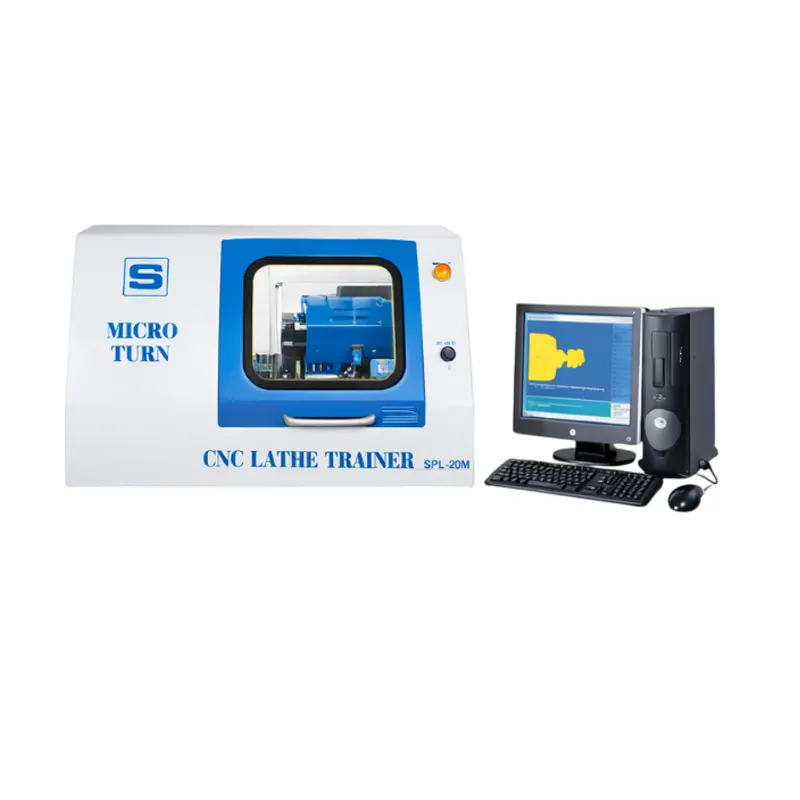

TECHNICAL SPECIFICATION - CNC Lathe Trainer :
| Parameters : | MICRO TURN | POWER TURN |
|---|---|---|
| Capacity | ||
| X Axis Travel | 80 mm | 100 mm |
| Z Axis Travel | 200 mm | 250 mm |
| Swing Over Bed | 200 mm | 200 mm |
| Swing Over Cross-slide | 60 mm | 80 mm |
| Distance between Centre | 250 mm | 300 mm |
| Spindle Motor | 0.5 HP | 1 HP / 2 HP |
| Turret | 8 Station Programmable with 4 Internal & 4 External Tools (optional) | 8 Station Programmable with 4 Internal & 4 External Tools. |
| Controller | PC based with windows based software for Simulation and Machine Execution. | PC based with windows based software for Simulation and Machine Execution. |
| Machine | With FMS compatibility, Automatic Lubrication system (optional) | With FMS compatibility, Automatic Lubrication system ,Built in Servo Stabilizer. |
| Note: Specifications, Standard Accessories, options etc. indicated are subject to change due to continuous development. | ||
TECHNICAL SPECIFICATION - CNC Mill Trainer :
| Parameters : | MICRO MILL | POWER MILL |
|---|---|---|
| Capacity | ||
| X Axis Travel | 200 mm | 250 mm |
| Y Axis Travel | 150 mm | 175 mm |
| Z Axis Travel | 150 mm | 175 mm |
| Spindle Motor | 0.5 HP | 1 HP |
| Tool Changer | NA | 6 Station Programmable ATC |
| Controller | PC based with windows based software for Simulation and Machine Execution. | PC based with windows based software for Simulation and Machine Execution. |
| Machine | With FMS compatibility, Automatic Lubrication system (optional) | With FMS compatibility, Automatic Lubrication system ,Built in Servo Stabilizer. |
| Note: Specifications, Standard Accessories, options etc. indicated are subject to change due to continuous development. | ||
